Specifications
Details | |
---|---|

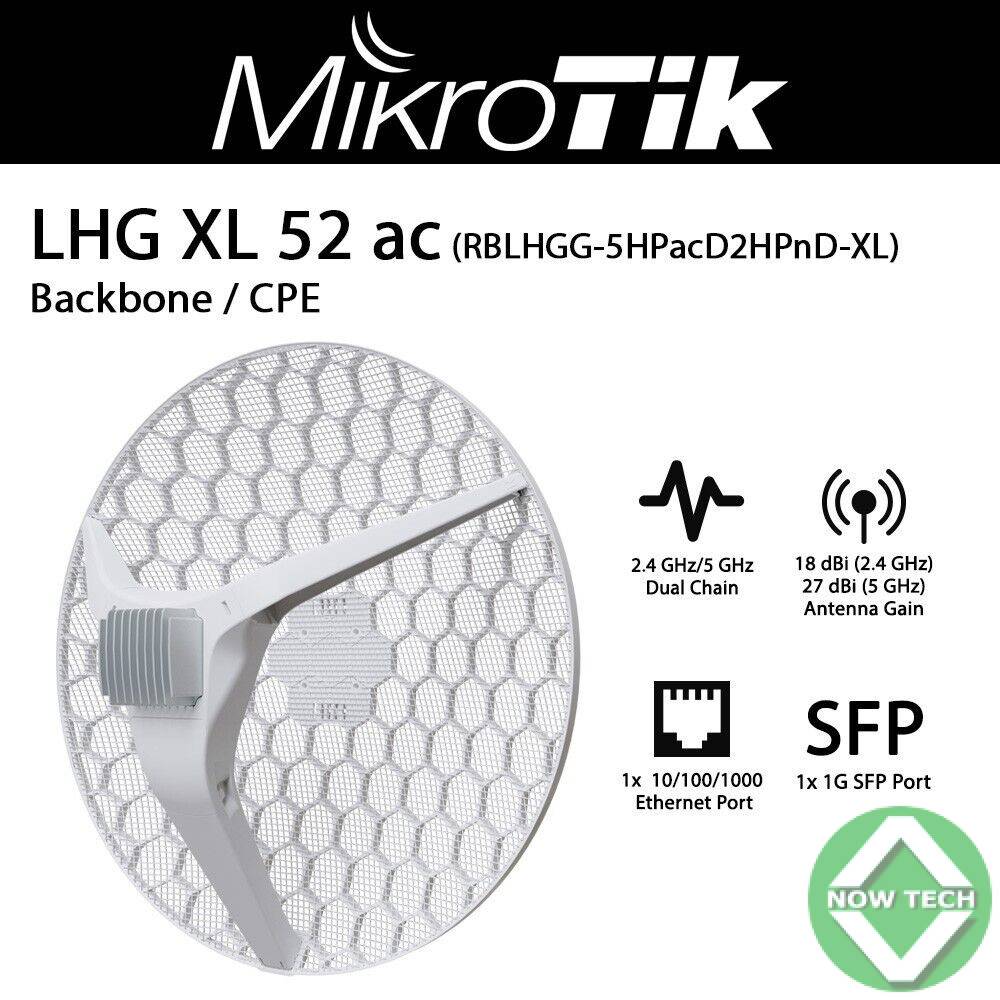

Product code | RBLHGG-5HPacD2HPnD-XL |
Architecture | ARM 32bit |
CPU | IPQ-4018 |
CPU core count | 4 |
CPU nominal frequency | 716 MHz |
Switch chip model | IPQ4018 |
Dimensions | Ø 550 x 291 mm |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 256 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
IPsec hardware acceleration | Yes |
Suggested price | $189.00 |
Powering
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 18 W |
Max power consumption without attachments | 16 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
Wireless specifications
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 18 |
Wireless 2.4 GHz chip model | IPQ-4018 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Wireless 5 GHz Max data rate | 867 Mbit/s |
Wireless 5 GHz number of chains | 2 |
Wireless 5 GHz standards | 802.11a/n/ac |
Antenna gain dBi for 5 GHz | 27 |
Wireless 5 GHz chip model | IPQ-4018 |
Wireless 5 GHz generation | Wi-Fi 5 |
Ethernet
Details | |
---|---|
10/100/1000 Ethernet ports | 1 |
