- Video compressionH.264+/H.264
- Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
- Frame rateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
- Video bit rate32 Kbps to 4 Mbps
- Dual streamSupport
- Stream typeVideo, Video & Audio
- Audio compressionG.711u
- Audio bit rate64 Kbps
- Video and Audio
- IP video input1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP cameras

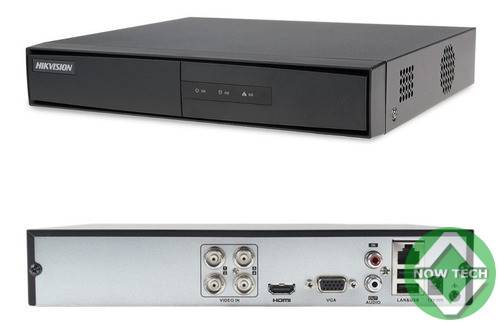

- Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Turbo HD input1080p25, 1080p30, 720p25, 720p30
- AHD input1080p25, 1080p30, 720p25, 720p30
- HDCVI input1080p25, 1080p30, 720p25, 720p30
- CVBS inputSupport
- Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio output1-ch, RCA (Linear, 1 KΩ)
- Two-way audioReuse the first audio input
- Synchronous playback4-ch
- VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Network
- Remote connections32
- Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
- Auxiliary interface
- SATA1 SATA interface
- CapacityUp to 6 TB capacity for each disk
- Alarm in/outN/A
- USB interfaceRear panel: 2 × USB 2.0
