OPERATING VOLTAGE | 24VDC (12VDC~28VDC) |
STANDBY CURRENT | ≤60µA |
ALARM CURRENT | 10mA≤I≤30mA |
INDICATORS | Red. Quiet in normal condition. Illuminates steadily in alarm. |
REMOTE INDICATOR OUTPUT | Directly connecting with LED (built-in 2k resistor in series). Quiet in normal condition. Illuminates steadily in alarm. |
MAXIMUM RIPPLE VOLTAGE | 4V (peak-to-peak value) |
ALARM CLEAR | Instantaneous Power-off (5s Max., 2.5VDC Max.) |
POWER-UP TIME | ≤10s |
MAX. WIND SPEED | 7.6m/s (1500fpm) |
WIRING | Polarized 2-core for detection zone cable. Polarized 2-core for remote indicator. |
AMBIENT TEMPERATURE | -10°C to +50°C |
RELATIVE HUMIDITY | ‑≤95%, non condensing |
INGRESS PROTECTION RATING | IP23 |
MATERIAL AND COLOR OF ENCLOSURE | ABS, white (RAL9016) |
DIMENSIONS | Diameter: 100mm Height: 56mm (with base) |
MOUNTING HOLE DISTANCE | 45mm~75mm |
WEIGHT | About 120g |
Pyronix

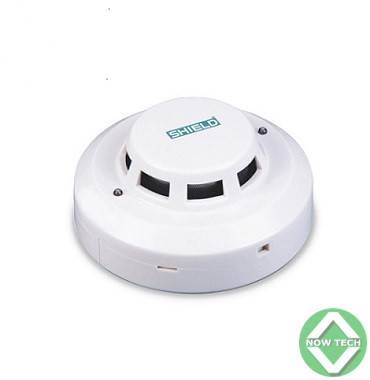

DETECTEUR DE FUMEE PHOTOELECTRIQUE D-C401SHIELD bon prix en vente au Cameroun.
SPECIFICATION
OPERATING VOLTAGE | 24VDC (12VDC~28VDC) |
STANDBY CURRENT | ≤60µA |
ALARM CURRENT | 10mA≤I≤30mA |
INDICATORS | Red. Quiet in normal condition. Illuminates steadily in alarm. |
REMOTE INDICATOR OUTPUT | Directly connecting with LED (built-in 2k resistor in series). Quiet in normal condition. Illuminates steadily in alarm. |
MAXIMUM RIPPLE VOLTAGE | 4V (peak-to-peak value) |
ALARM CLEAR | Instantaneous Power-off (5s Max., 2.5VDC Max.) |
POWER-UP TIME | ≤10s |
MAX. WIND SPEED | 7.6m/s (1500fpm) |
WIRING | Polarized 2-core for detection zone cable. Polarized 2-core for remote indicator. |
AMBIENT TEMPERATURE | -10°C to +50°C |
RELATIVE HUMIDITY | ‑≤95%, non condensing |
INGRESS PROTECTION RATING | IP23 |
MATERIAL AND COLOR OF ENCLOSURE | ABS, white (RAL9016) |
DIMENSIONS | Diameter: 100mm Height: 56mm (with base) |
35,000 CFA 40,000 CFA
