Description

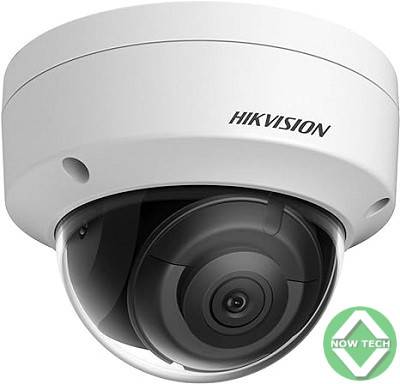

Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time: 1/3 s to 1/100,000 s
- Day & Night: IR cut filter
- Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
- 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
- Lens Mount: M12
- Iris Type: Fixed
- Aperture: F1.6
DORI
- DORI
- 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
- 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
