Processeur: 2xIntel Xeon Silver 4310 (12C 18M Cache 2.1 GHz)
RAM: 256GB 2x128GB DDR4 RDIMM 3200MHz
HDD: HDD (up to 8 HDD 2.5” SFF)
Module de commande à distance: DRAC 9 Express
Carte réseau: 2 port 1Gb/s (Integrated)
Fréquence du processeur propre: 2.10 GHz
Bloc d’alimentation: x Dell 600W Hot-Plug
Facteur de forme: 1U
Rails crémaillère: ye

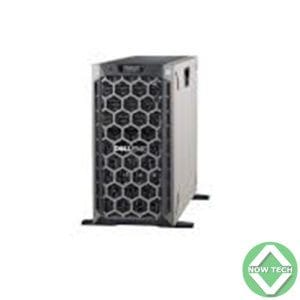

• Form factor        Tower (5U rackable)
• Processors          Intel® Xeon® processor E5-2600 product family
• Processor sockets            2
• Internal interconnect     2 x Intel QuickPath Interconnect (QPI) links; 6.4 GT/s; 7.2 GT/s; 8.0 GT/s
• Cache    2.5MB per core; core options: 2, 4, 6, 8
• Chipset                Intel C600
• Memory              Up to 768GB (24 DIMM slots): 2GB/4GB/8GB/16GB/32GB DDR3 up to 1600MHz
• I/O slots               7 PCIe slots:
• Four x16 slots with x16 bandwidth, full-length, full-height
• Two x8 slots with x8 bandwidth, full-length, full-height
• One x8 slot with x4 bandwidth, full-length, full-height
• RAID controller                 Internal controllers:
• PERC S110 (SW RAID)
• PERC H310
• PERC H710
• PERC H710P
• External HBAs (RAID):
• PERC H810
• External HBAs (non-RAID):
• 6Gbps SAS HBA
• Drive bays           Choose from eight 3.5” hot-swap drive bays plus four PCIe SSD drives (optional), twelve 3.5” hot-swap drive bays, sixteen 2.5” hot-swap drive bays plus four PCIe SSD drives (optional), or thirty-two 3.5” hot-swap drive bays
• Maximum internal storage          Up to 36TB
• Hard drives        Hot-plug hard drive options:
• 2.5” PCIe SSD, SAS SSD, SATA SSD, SAS (15K, 10K), nearline SAS (7.2K), SATA (7.2K)
• 3.5” nearline SAS (7.2K), SATA (7.2K), SAS (15K)
• Self-encrypting drives available
• Embedded NIC Intel Dual Port 1GbE LOM
• Power supply    Platinum efficiency 495W, 750W, or 1100W Auto-ranging power supplies
